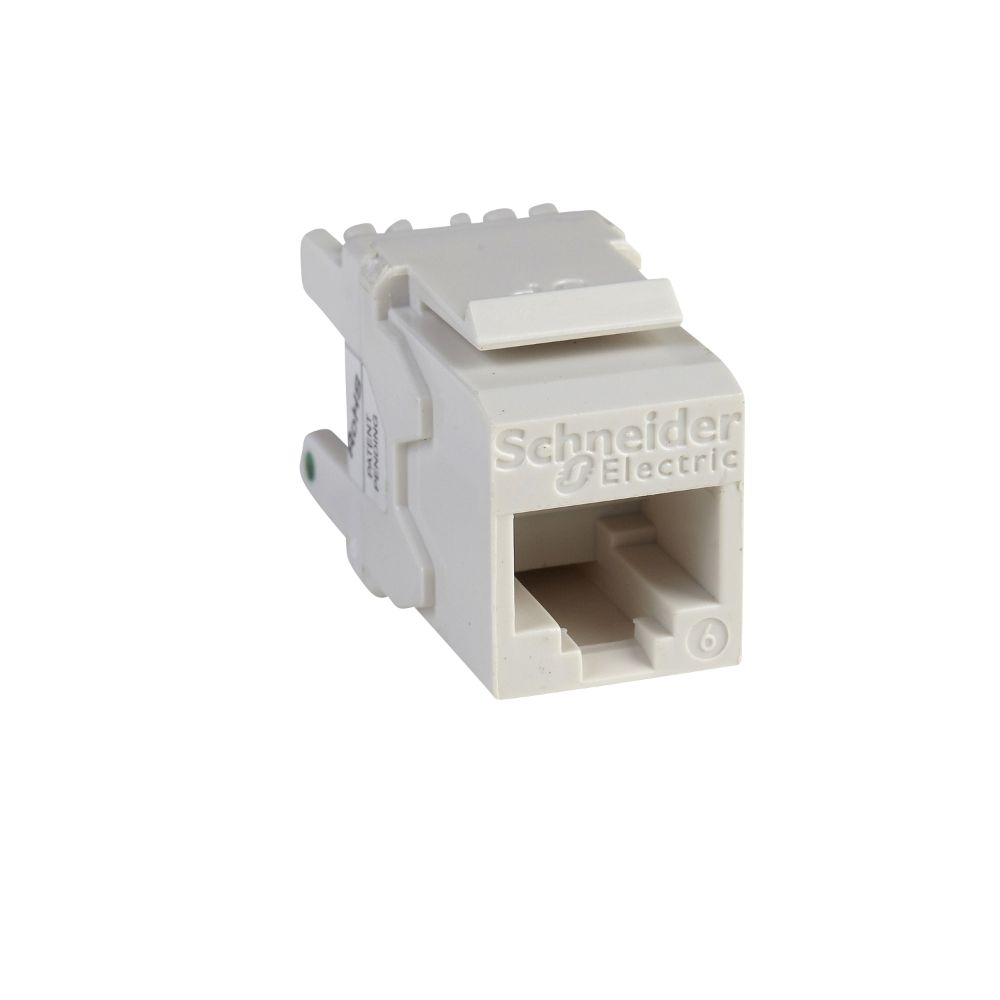

Name: Schneider Digilink Connect Cat6 UTP I/O Modular Jack
SKU: DC6KYSTUWT
Availability: InStock

Product Description

Schneider Digilink Connect Cat6 UTP I/O Modular Jack

Main
range of product	Digilink
product or component type	Modular jack
cable shielding type	UTP
communication network category	6
colour tint	White

Complementary
connector type	RJ45
type of footprint	Keystone
insulation resistance	>= 500 mOhm @ 500 V DC
number of matings	750 cycles
contacts material	Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel
pulling force	140 N
delay skew	<= 2.5 ns @ 1…100 MHz
[In] rated current	<= 1.5 A
contact resistance	<= 20 mOhm
[Ue] rated operational voltage	< 72 V DC

Environment
flame retardance	UL 94 V-0
product certifications	ETL verified
standards	ISO/IEC 11801 class E CENELEC EN 50173 ANSI/TIA-568-C.2

Offer Sustainability
Sustainable offer status	Green Premium product
RoHS (date code: YYWW)	Compliant – since 1201 – Schneider Electric declaration of conformity Schneider Electric declaration of conformity
REACh	Reference not containing SVHC above the threshold
Product environmental profile	Available
Product end of life instructions	Need no specific recycling operations
